-40%

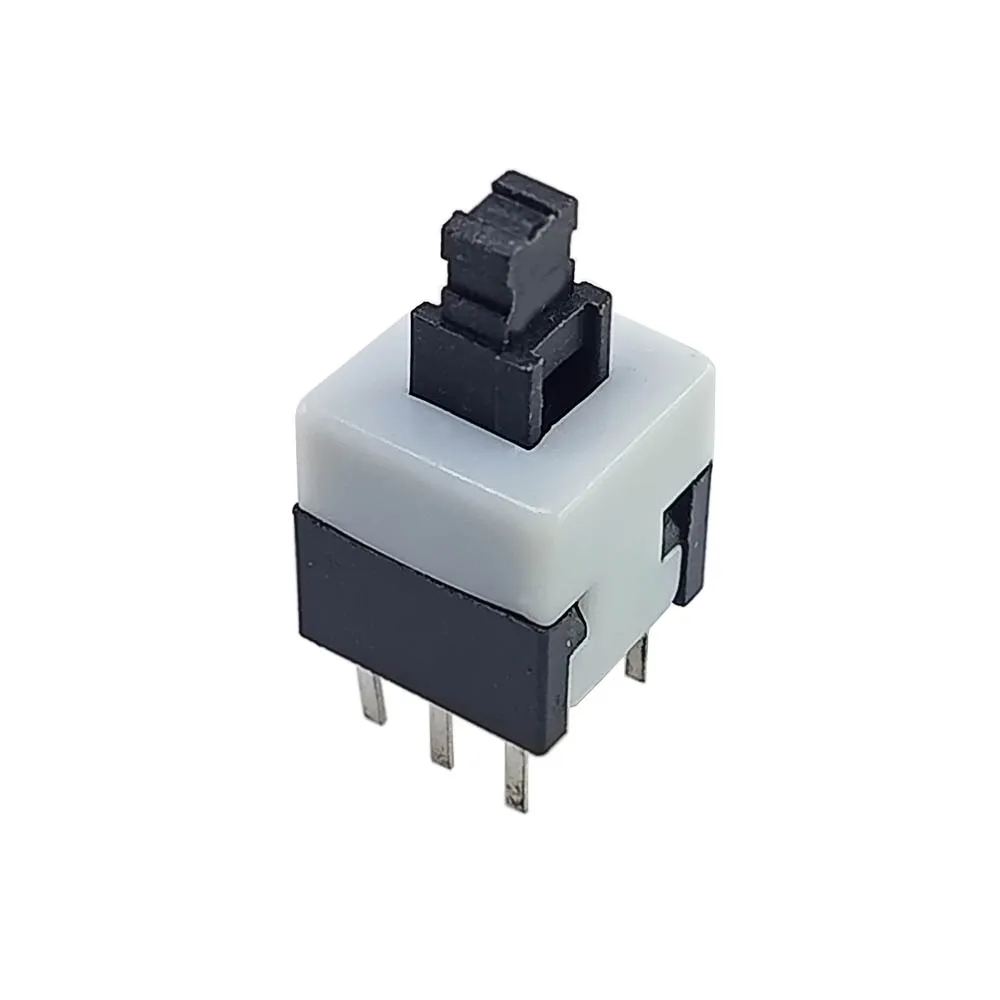

DPDT Push button switch self locking 6 pin

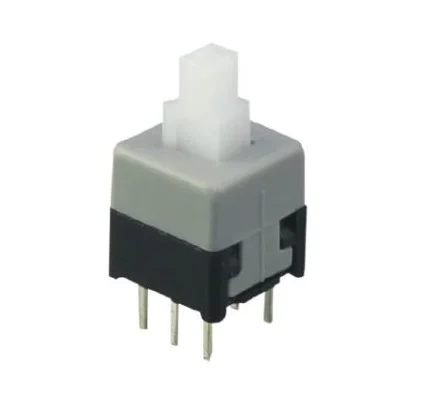

DPDT Push button switch self locking 6 pin - Image 2

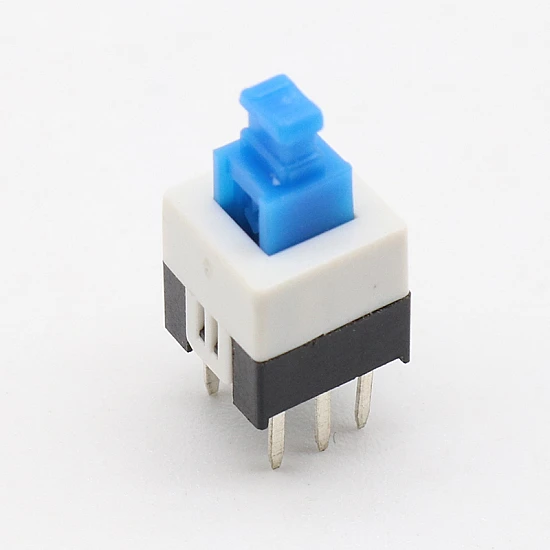

DPDT Push button switch self locking 6 pin - Image 3

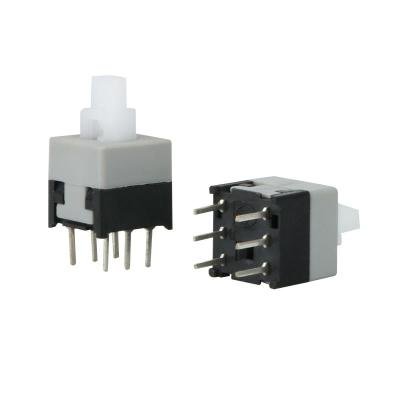

DPDT Push button switch self locking 6 pin - Image 4

DPDT Push button switch self locking 6 pin

Original price was: ₹10.00.Current price is: ₹6.00.

  1. Switch type: dpdt
  2. Small  8.5 x 8.5 mm. Size
  3. PCB through-hole mounting
  4. Maximum voltage DC 25v
  5. MAX Operating Current 2A

  6. Applications:

    1. LED lighting and toys
    2. household appliances
    3. instruments
    4. medical equipment
    5. hairdryer
    6. desk lamp etc.

This DPDT (Double Pole Double Throw) Push Button Switch with self-locking (latching) functionality and 6 pins is ideal for circuits that require on/off control with two independent switching paths. Once pressed, the switch locks into the “on” position and stays latched until pressed again — making it perfect for toggling functions in electronic devices, power control systems, and robotics.

Product Overview:

  • Switch Type: DPDT (Double Pole Double Throw)

  • Operation: Self-locking (latching) – stays in position until pressed again

  • Pins: 6 terminal connections

  • Mounting Type: Through-hole

  • Current Rating: Typically up to 3A @ 250V AC / 5A @ 125V AC (varies by model)

  • Button Type: Push button

  • Material: Durable plastic and metal construction

  • Contact Resistance: Low for efficient signal transmission

Key Features:

  • Allows control of two separate circuits simultaneously

  • Self-locking mechanism eliminates need for external latch circuitry

  • Sturdy build for long life and repeated use

  • Clear on/off tactile feedback

  • Suitable for AC or DC low-voltage applications

Applications:

  • Power control switches for DIY electronics

  • Mode selection switches in embedded systems

  • Signal routing or polarity reversal

  • Prototyping, automation, and robotics projects

  • Audio and light control panels

This DPDT Self-Locking Push Button Switch is a reliable solution for when you need stable, hands-free toggling of circuits — simple to install and robust enough for repeated cycles.
