RF transmitter & Receiver Modules

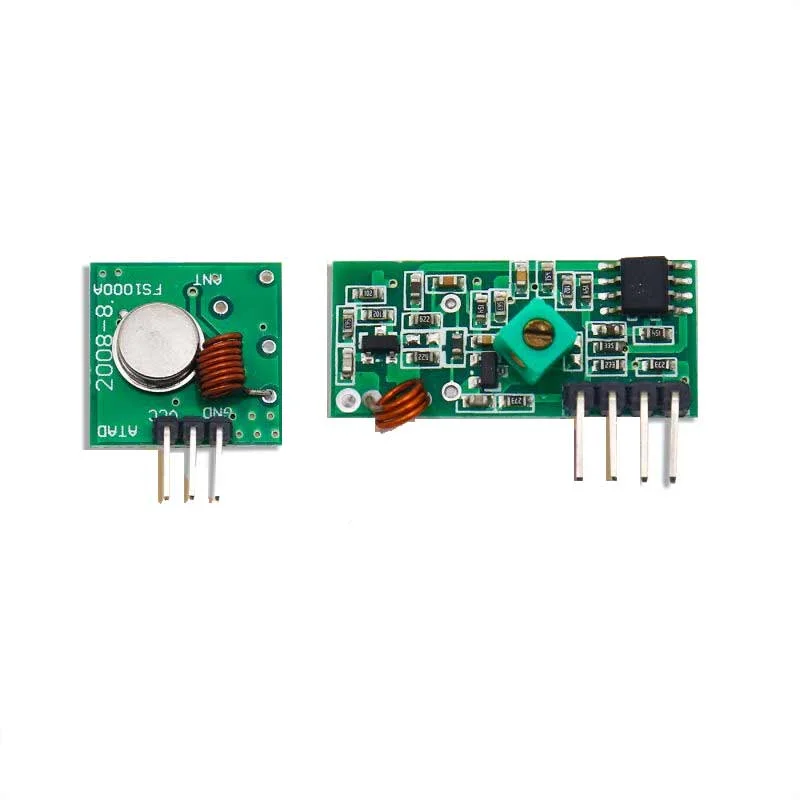

RF Wireless Transmitter Receiver Module

This is an ask hybrid RF wireless transmitter receiver module available at 433 mhz. The transmitter module employs a crystal-stabilized oscillator, ensuring accurate frequency control for best range performance. There is no requirement of external RF components except antenna.

RF transmitter features

• output power: 4-16dbm
• circuit shape: Saw

RF receiver features

• receiver frequency: 433.92
• typical sensitivity: -105dbm
• supply current: 3.5ma
• infrequency: 1mhz
• operation voltage: 5 volts
• Ideal for remote control applications where longer range is required. The transmitter operates from a 3-12v supply, making it ideal for battery-powered applications. Easy for application rx operating voltage: 5v tx frequency range: 433.92 mhz tx supply voltage: 3v – 6v tx out put power: 4 -12 dbm.

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

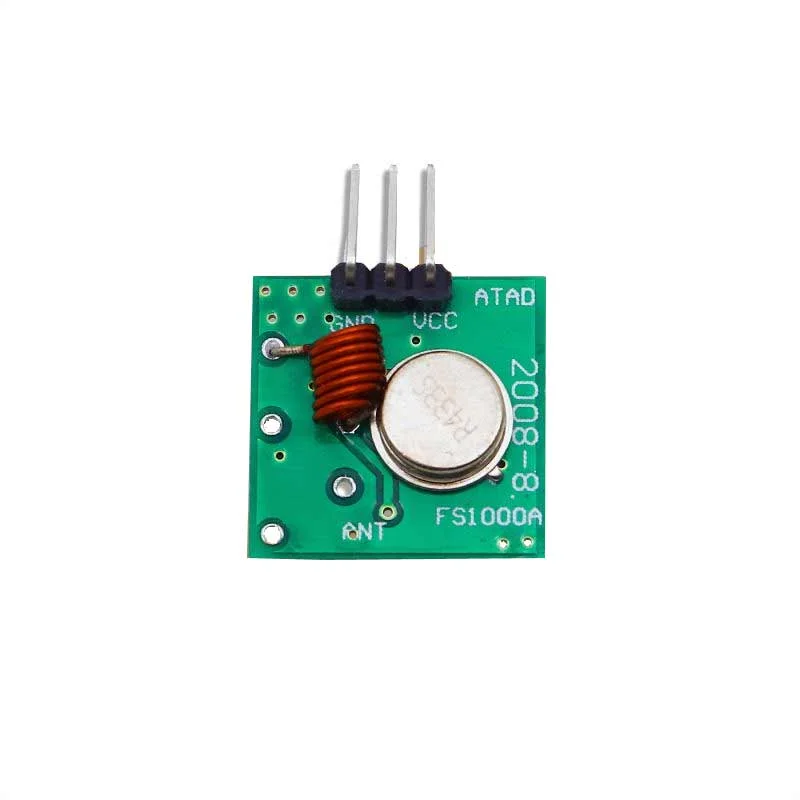

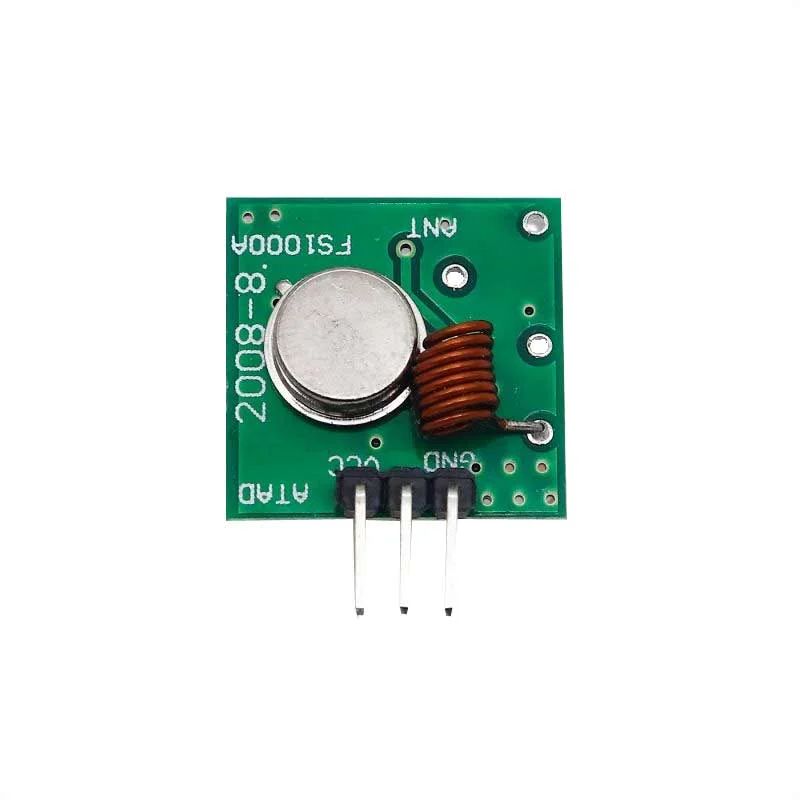

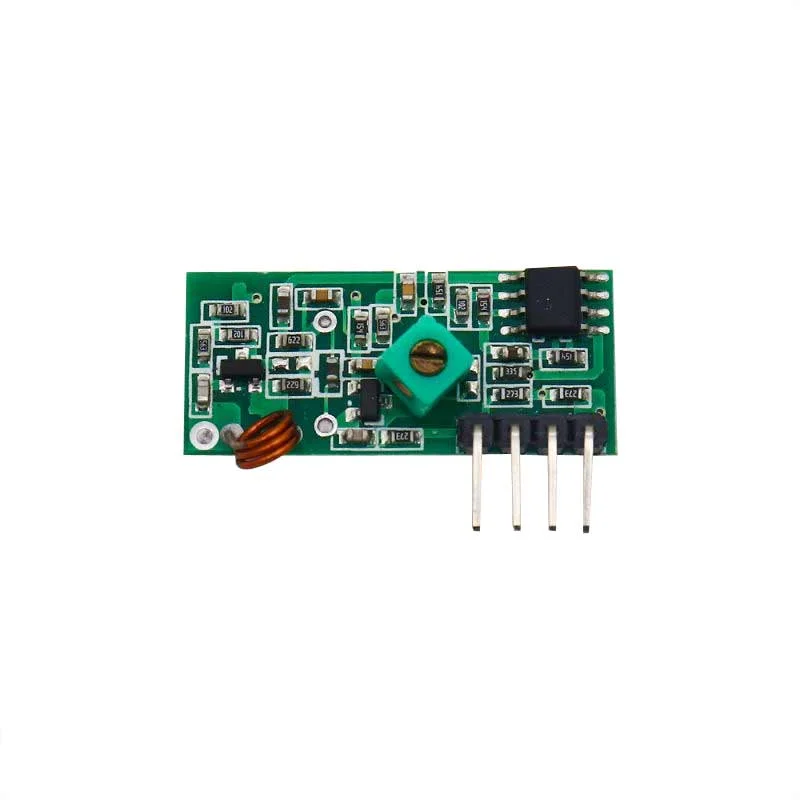

The RX – ASK is an ASK Hybrid receiver module. The RF wireless Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

Features:

• Transmitter Module employs a crystal-stabilized oscillator, ensuring accurate frequency control for best range performance
• Range in open space (Standard Conditions) : 100 Meters
• No requirement of external RF components except Antenna
• RX Supply Current: 3.5 mA. RX Typical Sensitivity: 105 Dbm
• Low Power Consumption.
