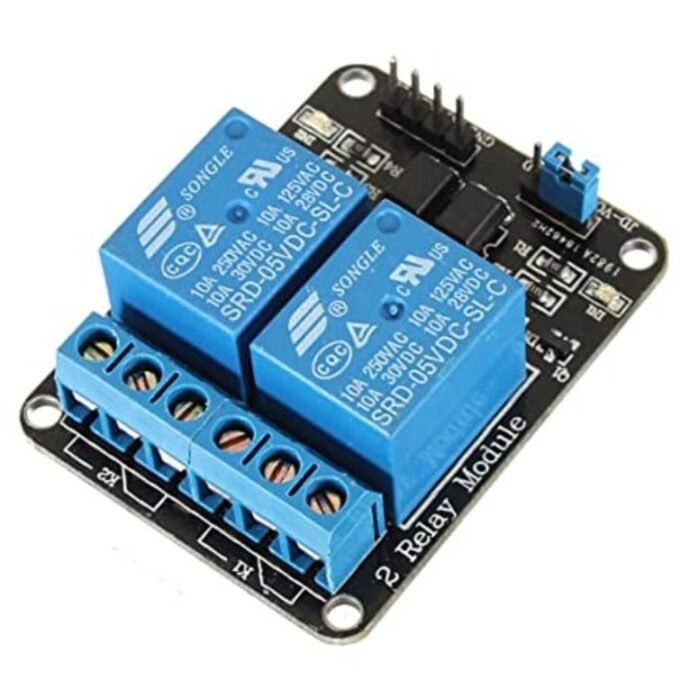

RELAY Module ( 2 Channel )

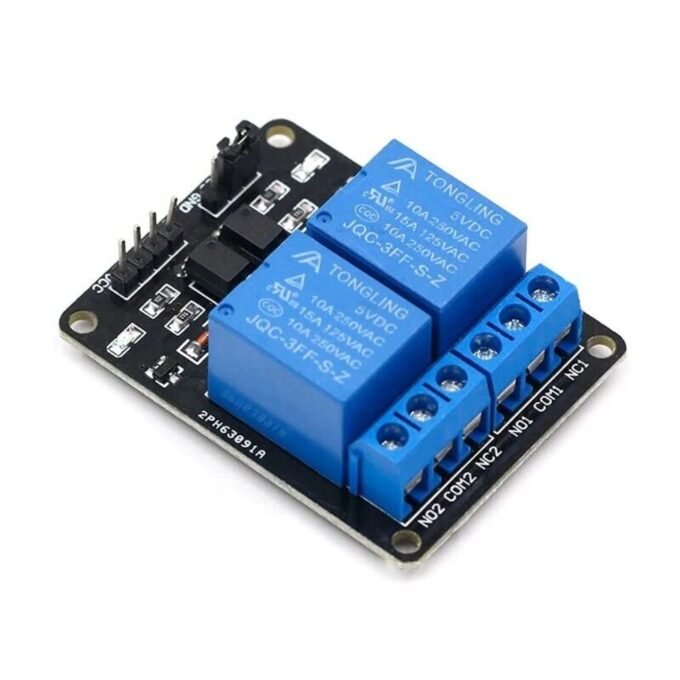

RELAY Module ( 2 Channel ) - Image 2
RELAY Module ( 2 Channel ) - Image 3
RELAY Module ( 2 Channel ) - Image 4

RELAY Module ( 2 Channel )

Original price was: ₹299.00.Current price is: ₹245.00.

  1. Low Level Trigger Relay Module
  2. Two separate LEDs for On/Off indication of the Relay.
  3. Triggering input voltage 3.3V – 5V
  4. Back EMF protection 2 LEDs to indicate when relays are ON.
  5. Works with logic level signals from 3.3V or 5V devices
  6. Opto isolation circuitry
  7. Module with diode current protection, short response time
  8. AC Control Voltage: 250V @max.10A
  9. DC Control Voltage: 30V @max. 10A

Out of stock

Category:

This is a 5V Dual Channel Relay Module with Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

This 5V Dual Channel Relay Module has a 1×4 (2.54mm pitch) pin header for connecting power (5V and 0V), and for controlling the 2 relays.

The pins are marked on the PCB as:

  • GND – Connect 0V to this pin.
  • IN1 – Controls relay 1, active Low Relay will turn on when this input goes below about 2.0V
  • IN2 – Controls relay 2, active Low Relay will turn on when this input goes below about 2.0V
  • VCC – Connect 5V to this pin. Is used to power the optocouplers

Features :

  1. 2 LEDs to indicate when relays are ON.
  2. Works with logic level signals from 3.3V or 5V devices
  3. Opto isolation circuitry
  4. Module with diode current protection, short response time
  5. Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing

Package Includes :

1 x 2 Channel isolated 5V 10A relay module with Optocoupler
