L298N motor driver module with onboard 5V regulator. Controls 2 DC or stepper motors using PWM. Ideal for robotics and automation projects. Supports up to 35V and 2A per channel.
L298 2A Dual Motor Driver Module with PWM Control
Original price was: ₹179.00.₹89.00Current price is: ₹89.00.

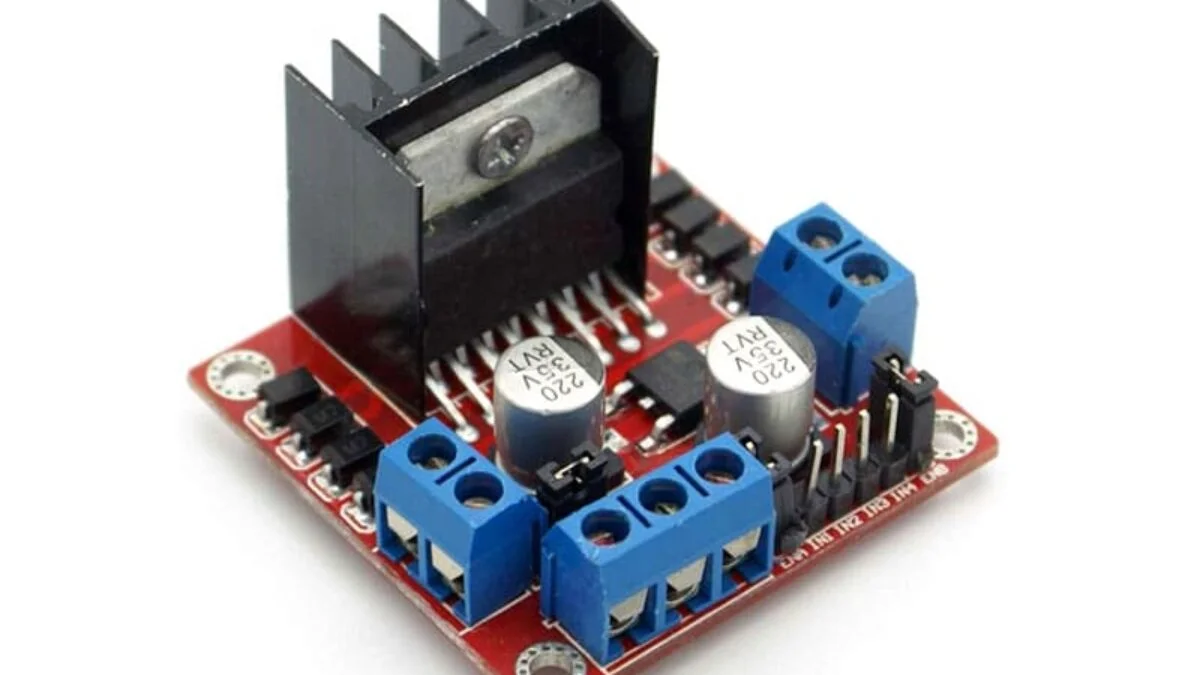

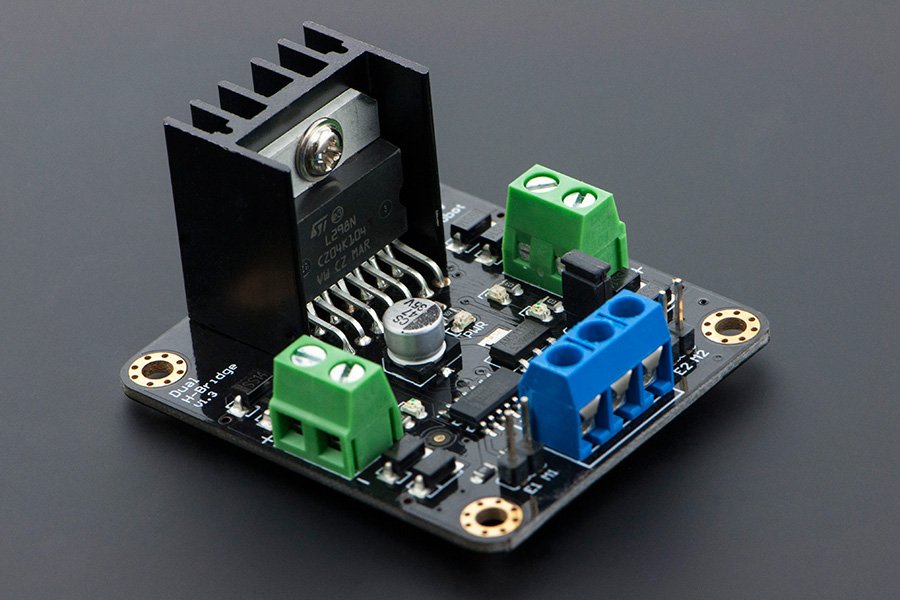

L298N Dual H-Bridge Motor Driver Module – High Power DC & Stepper Motor Control
The L298N Motor Driver Module is a powerful and reliable solution for controlling DC motors and stepper motors in robotics and automation projects. It uses the widely popular L298 dual H-bridge driver IC and features an onboard 5V voltage regulator, which can be used to power external circuits.
Capable of controlling up to 4 DC motors (unidirectional) or 2 DC motors (bidirectional with speed control), this module is perfect for applications such as robot arms, micro-mouse robots, line-followers, and other mechatronics projects.
The onboard H-Bridge circuit allows you to drive motors in both directions using PWM (Pulse Width Modulation) for precise speed control. PWM helps manage motor performance more effectively and extends motor life by providing smooth voltage control.
Key Features:
-
Driver IC: L298N Dual H-Bridge Motor Driver
-
Motor Supply Voltage: 5V to 35V DC
-
Logic Supply Voltage (Vss): 4.5V – 5.5V
-
Peak Motor Drive Current: 2A per bridge
-
Logic Current Consumption: 0–36mA
-
Max Power Dissipation: 20W
-
Onboard 5V regulator: Can be used to power external components
-
Supports PWM control for motor speed regulation
-
Drives 2 DC motors (bidirectional) or 4 motors (unidirectional)
