-30%

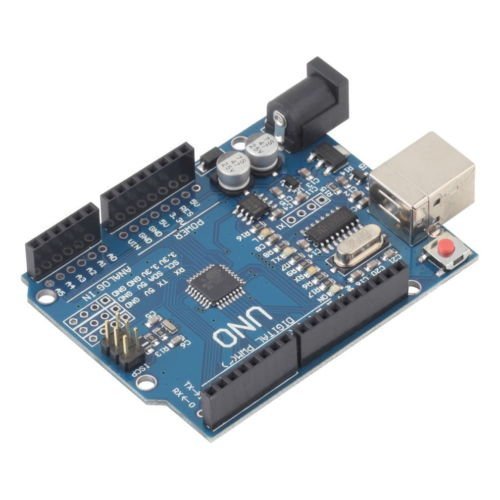

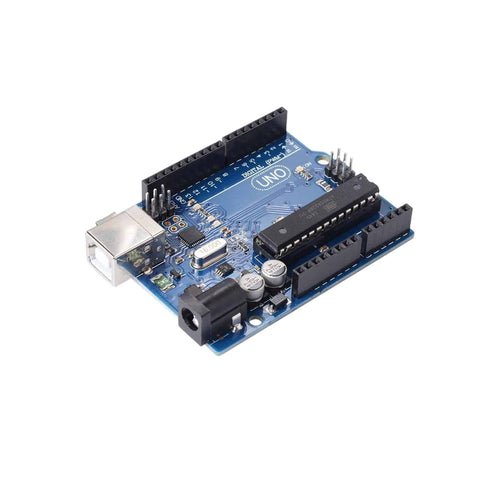

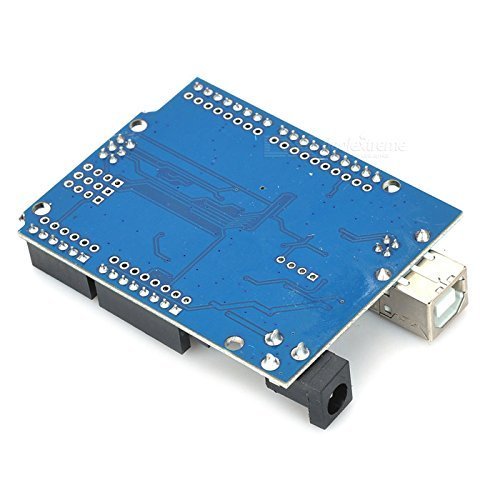

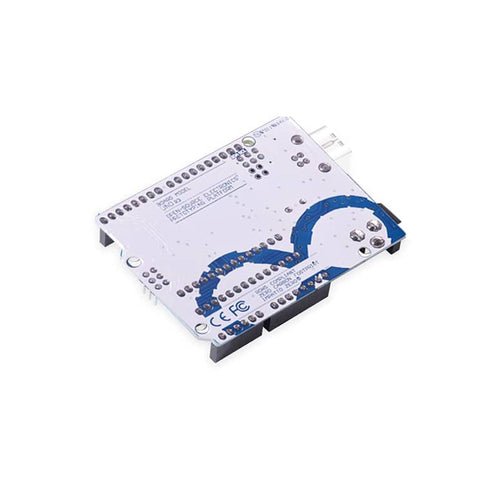

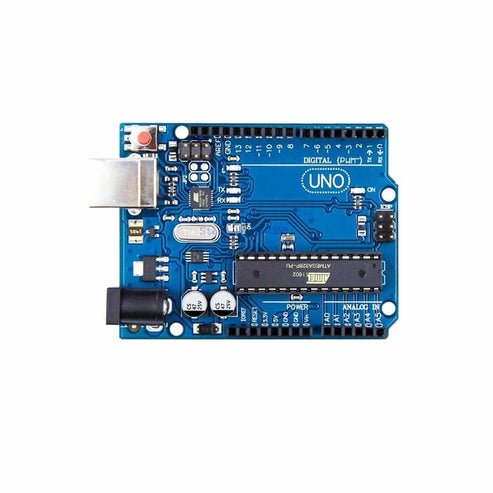

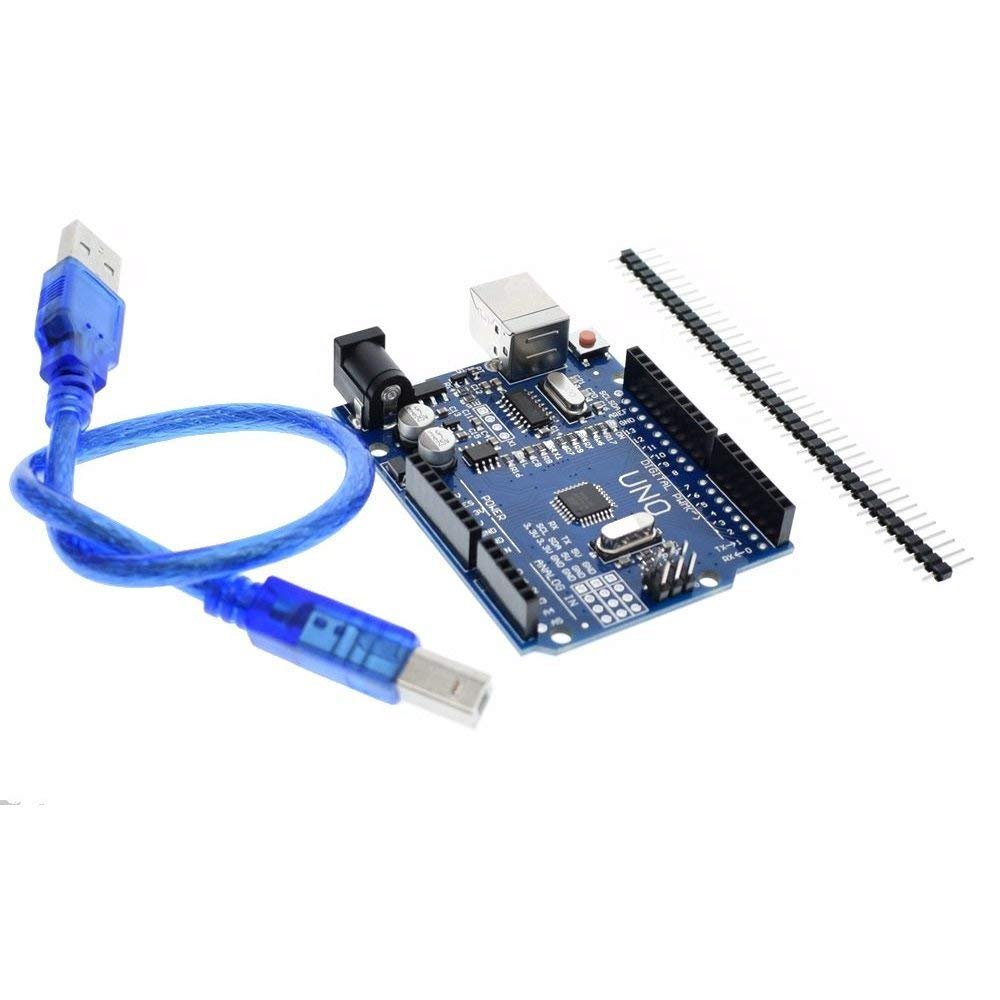

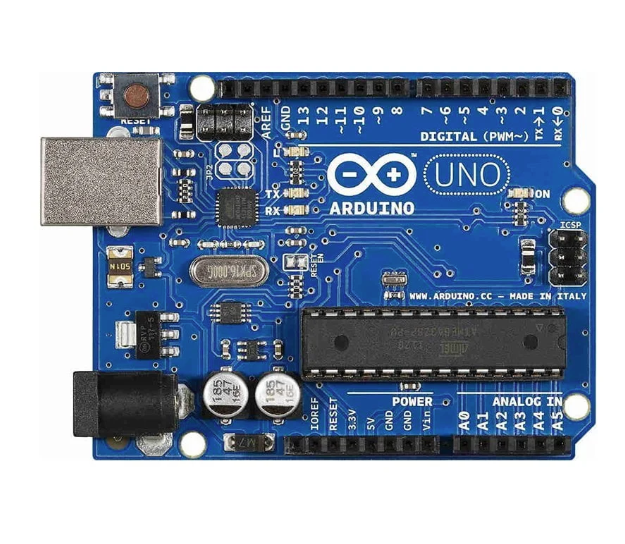

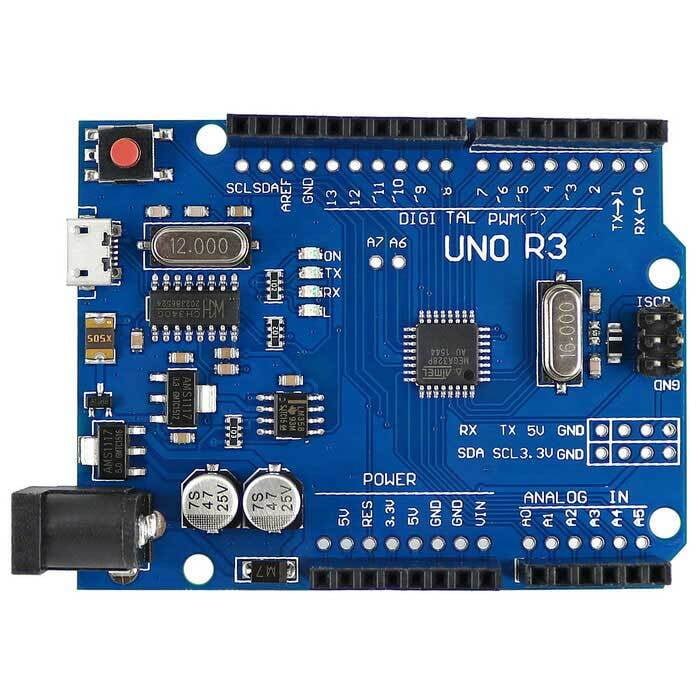

Arduino UNO R3 Boards
Arduino UNO R3 Boards - Image 2
Arduino UNO R3 Boards - Image 3
Arduino UNO R3 Boards - Image 4
Arduino UNO R3 Boards - Image 5
Arduino UNO R3 Boards - Image 6

Arduino UNO R3 Boards

Original price was: ₹499.00.Current price is: ₹349.00.

  • The Arduino Uno is a microcontroller board based on the Atmel’s ATmega328
  • It has 14 digital input output pins of which 6 can be used as PWM outputs and 6 analog inputs
  • The Arduino Uno can be powered via USB connection or with an external power supply
  • The Arduino Uno original contains everything needed to support the microcontroller, simply connect it to a computer with a USB cable

  • Applications:

    • DIY project prototyping.
    • Developing varied varieties of projects that require a code-based control.
    • Automation System development.
    • Learning AVR programming.
    • Entry-level circuit designing.



In stock

  • 9 Volt Battery Snaps with Leads, usally used for LED strip light, science experiment, electrical projects and so on.
  • High quality sturdy plastic shell button clips, good conductivity and contact performance, holds up better than standard soft glue connector.
  • Red (positive) and Black (negative) cable, approx 6 inch length.
  • Great to replace a broken battery connector on your electronic device, and install easily.
  • Package contains 6 pcs 9V Battery Clips (9V battery is not included)
Specification Details
Material Durable plastic with high-quality conductive metal contacts
Size Available in multiple sizes to accommodate various wire gauges
Compatibility Compatible with most standard wires and electronic components
Connector Type Push-to-snap design for easy connection and disconnection
Color Typically available in multiple colors for easy identification
Temperature Range Operates effectively within a wide range of temperatures
Voltage Rating Designed for low voltage applications (typically up to 12V)
Current Rating Supports currents up to 5A depending on the connector size

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

  • The Arduino Uno R3 is a microcontroller board based on a removable, dual-inline-package (DIP) AT-mega328 AVR microcontroller. It has 20 digital input/output pins (of which 6 can be used as PWM outputs and 6 can be used as analog inputs). Programs can be loaded on to it from the easy-to-use Arduino computer program.
  • The Arduino UNO R3 is an open-source microcontroller board based on the ATmega328 chip. This Arduino UNO R3 Board has 14 digital input/output pins, 6 analogue input pins, an Onboard 16 MHz ceramic resonator, a Port for USB connection, an Onboard DC power jack, An ICSP header and a microcontroller reset button. Arduino UNO R3 contains everything needed to support the microcontroller.

    Using the Arduino UNO R3 is also very easy, simply connect it to a computer with a USB cable or power it with a DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2Atmega8U2 up to version R2) programmed as a USB-to-serial converter. While the Arduino UNO R3 can be powered via the USB connection or with an external power supply, the power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or a battery.

    The adapter can be connected by plugging a 2.1mm centre-positive plug into the board’s power jack. Also leads from a battery can be inserted in the Gnd and Vin pin headers of the Power connector. The Arduino UNO R3 can operate on an external supply of 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may be unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 5v to 12v for ARDUIN0 Uno.
