433MHZ RF Wireless Transmitter Recevier Module with 433MHZ frequency

Original price was: ₹199.00.Current price is: ₹142.00.

433MHz frequency is a commonly used frequency band for all types of equipment that require little power. 433MHz frequency wireless transceiver module, using high-frequency RF technology, so is also called RF433 RF small module

The typical range of a 433MHz RF transmitter and receiver module is generally 20 to 200 meters in open space. However, this can vary significantly depending on factors like the specific module used, the environment (e.g., number of walls, interference), and the power output. Some modules may offer ranges exceeding 300 meters in ideal line-of-sight conditions with a suitable antenna.

Out of stock

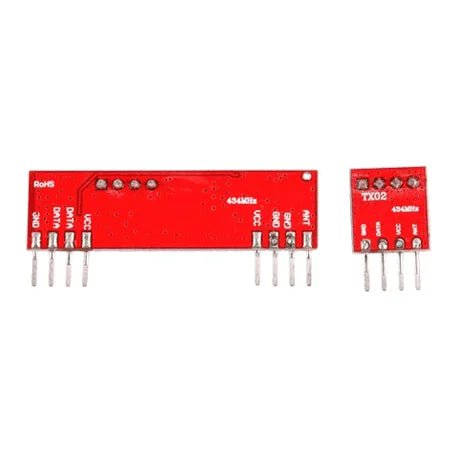

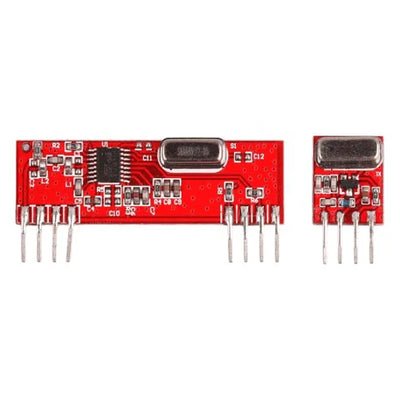

The 433MHz RF Transmitter and Receiver Module pair is a low-cost, compact wireless communication solution used for short-range data transmission. It is widely used in Arduino and embedded systems for applications like remote controls, alarms, wireless sensors, and home automation systems.

📶 Key Features:

Transmitter Module:

  • Operating Voltage: 3V to 12V (5V typical)

  • Working Current: ~10mA (at 5V)

  • Frequency: 433 MHz

  • Transmission Distance: 20–200 meters (line-of-sight, depending on power supply and antenna)

  • Modulation: ASK (Amplitude Shift Keying)

  • Data Rate: 4 Kbps (typical)

  • Antenna Required: Yes, ~17.3 cm wire recommended for 433MHz

Receiver Module:

  • Operating Voltage: 5V DC

  • Working Current: 4mA – 5.5mA

  • Frequency: 433 MHz

  • Sensitivity: -105 dBm (typical)

  • Modulation: ASK/OOK

  • Bandwidth: 2 MHz

  • Data Rate: 4 Kbps (max recommended)

  • Antenna Required: Yes, improves range significantly

🛠️ Applications:

  • Wireless data transmission between microcontrollers (e.g. Arduino to Arduino)

  • Remote keyless entry systems

  • Weather station data communication

  • Wireless sensor networks

  • Garage door openers

  • Home automation (e.g., smart lighting control)
