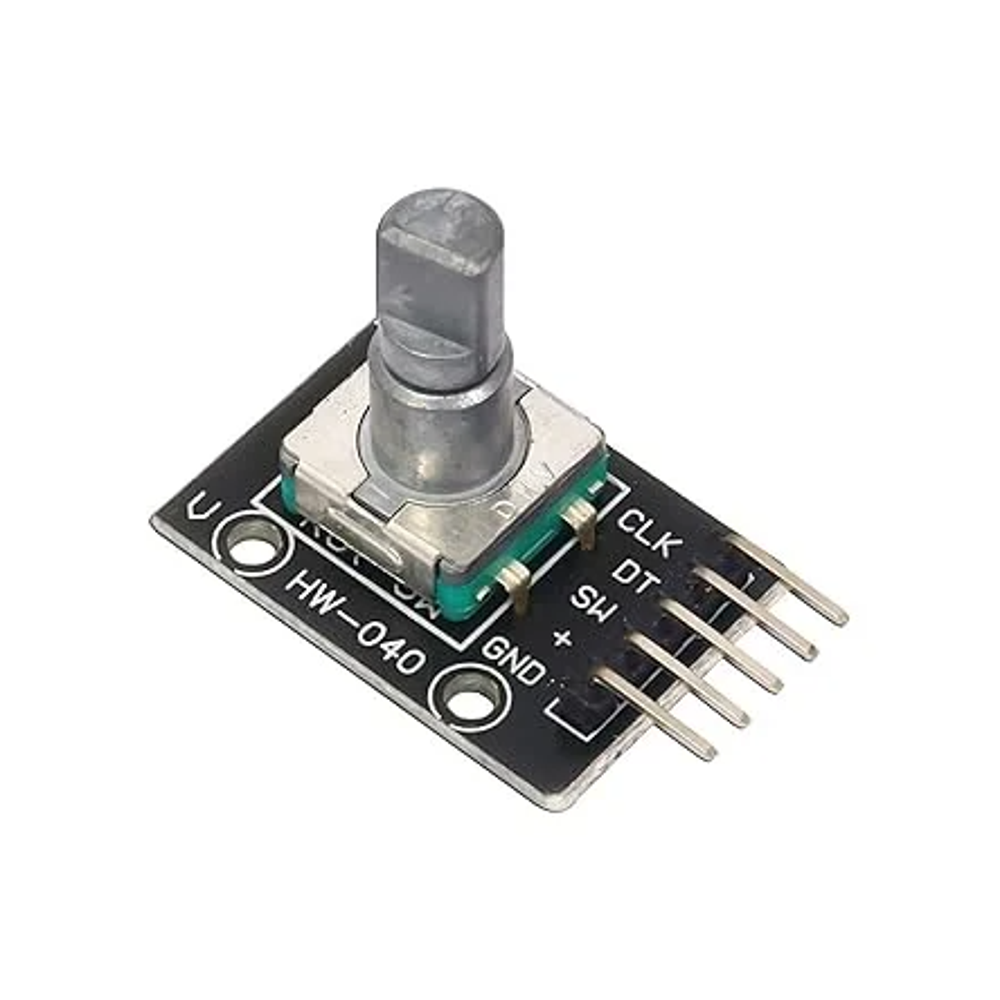

360 Degree Rotary Encoder Module

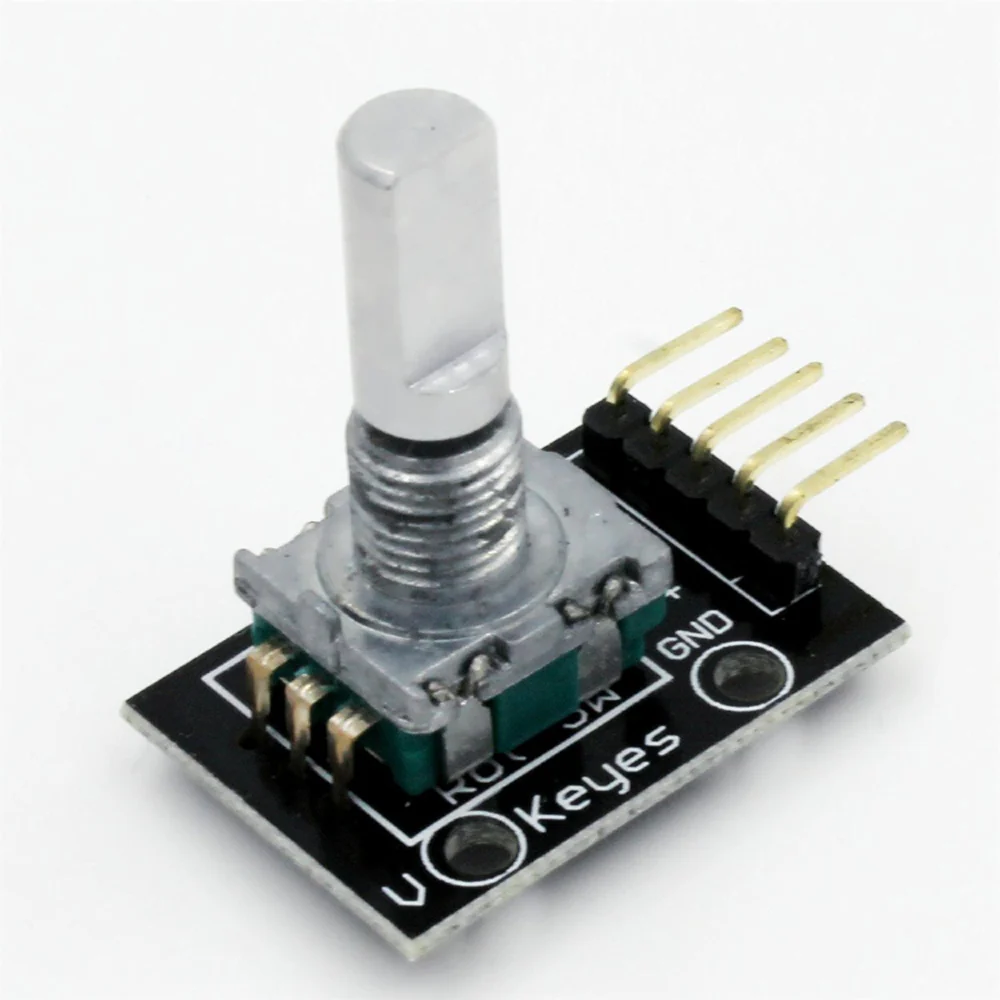

360 Degree Rotary Encoder Module - Image 2

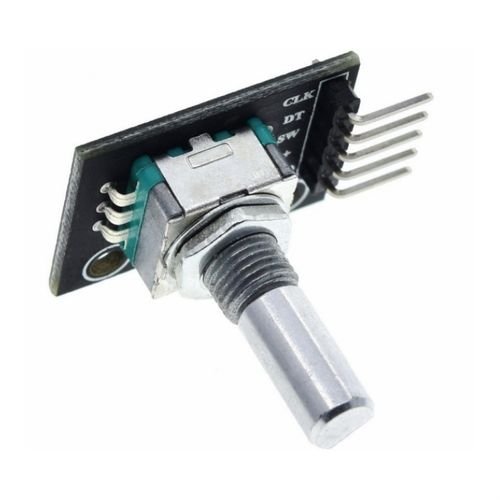

360 Degree Rotary Encoder Module - Image 3

360 Degree Rotary Encoder Module

Original price was: ₹60.00.Current price is: ₹45.00.

  1. Type : Incremental Encoder.
  2. Cycles per revolution (CPR) : 20.
  3. Working voltage : 0 – 5V.
  4. Material : PCB + Brass.
  5. Mounting Nut Thread diameter: 6.6mm
  6. Weight : 10 gm.
  7. 360 Degree Rotary Encoder Module
Category:

Rotary Encoder Module – 360° Position Sensor with Push Button

This rotary position sensor module is designed for accurate and reliable detection of shaft rotation over a full 360° range. It’s ideal for applications requiring incremental position sensing, such as menu navigation, motor control, and digital input systems.

The module features both analog and digital outputs (depending on the variant), allowing compatibility with a wide range of microcontrollers and embedded systems. It provides incremental encoding as the shaft rotates, enabling precise position tracking.

Some variants include an integrated push-button switch, adding extra control functionality for interactive projects. Its compact form factor with mounting holes makes it easy to install in custom enclosures, panels, or robotics.

Key Features:

  • Rotary Position Sensing over a 360° range
  • Digital (incremental) and Analog output options available
  • Incremental Encoder Output for rotational feedback
  • Built-in Push Button (on select variants) for added control functionality
  • Compact Design with mounting holes for easy installation
